2  Hardware Components

The EEG lab room is comprised (1) the EEG cabin (2) the workstation and (3) the cleaning station.

The task is performed inside the cabin, while the computers outside the cabin at the workstation runs the task and data collection. The workstation also includes the cleaning equipment, syringes, paper tissues, and towels.

The EEG Cabin

The Workstation

The Cleaning Station

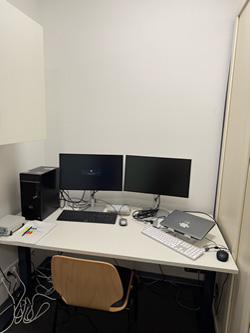

Outside the EEG cabin, at the workstation, you find see the task laptop, the EEG tower, and the trigger box. The laptop executes the experiment task and collects behavioral data, the tower records the EEG data, and the trigger box integrates triggers with the EEG data.

EEG Tower

Battery

Trigger Box

Inside the EEG cabin, you will find the amplifier, battery, participant’s monitor, and electrode cap and cable to carry out the experiment. The electrodes are connected to the amplifier which is powered by the battery. The monitor displays the task for the participant, and the cap provides a base for the electrodes to collect the data.

Electrodes cap

Participant’s Monitor

Amplifier

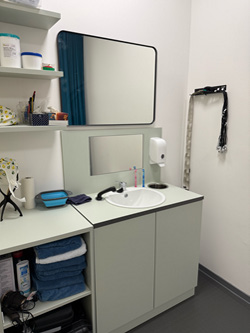

The cleaning station is where you will find:

Syringes

Gel

Towels & Shampoo

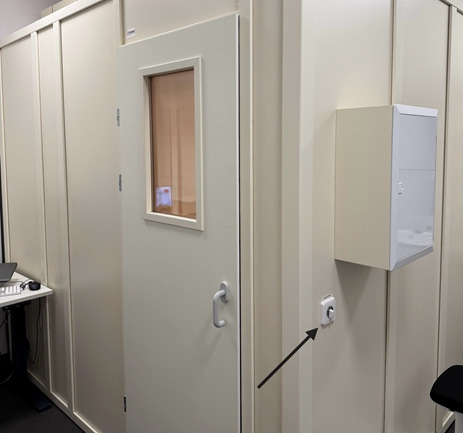

Do not forget to turn on the ventilator:

Ventilator

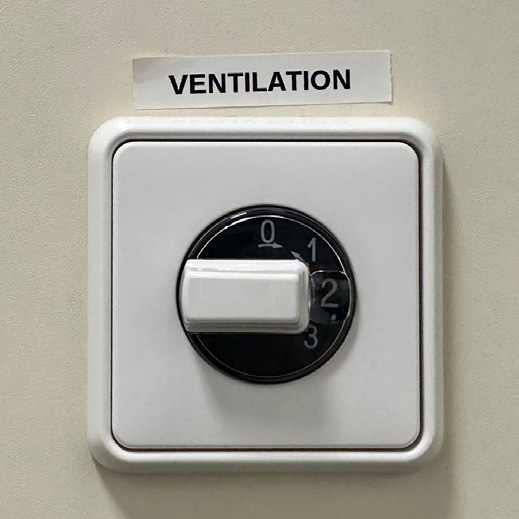

Ventilator set on 2
